SHM-B系列(超薄款远距离型）
浏览次数：316
  • QQ咨询
  • 微信咨询
  • 询盘报价
  • 详情介绍

    • 产品概述

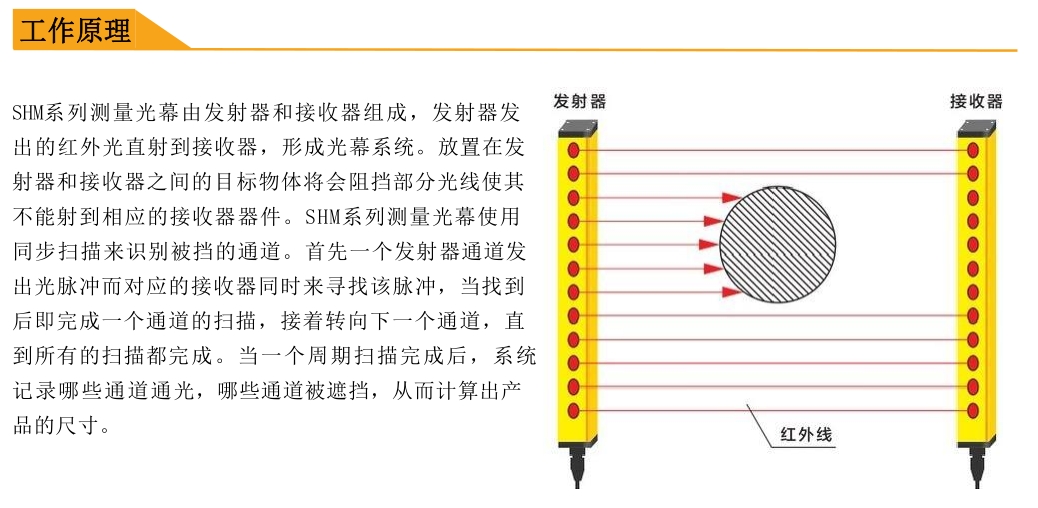

    · 高精度的SHMB系列测量光栅适用于高精度的检测和测量。

    · 包括在线检测、尺寸测量、轮廓检测、精度纠偏、孔洞检测、外形检测、边缘和中心定位，张力控制，零件计数、在线产品尺寸检测和以上类似的检测和测量


    产品组成

    发光器、 受光器、 传输线构成


    技术参数

      产品系列SHM-B
      截面尺寸13mmx28mm超薄款
      光轴间距10mm/15mm/20mm/30mm/40mm/60mm
      光轴数量4、6、8、10…256
      光栅高度58mm-3000mm
      检测距离400mm-3000mm
      最小被测物体尺寸10mm/15mm/20mm/30mm/40mm/60mm
      电源电压24V±10%
      功率3-10W
      响应时间≤10ms
      绝缘电阻≥100MΩ

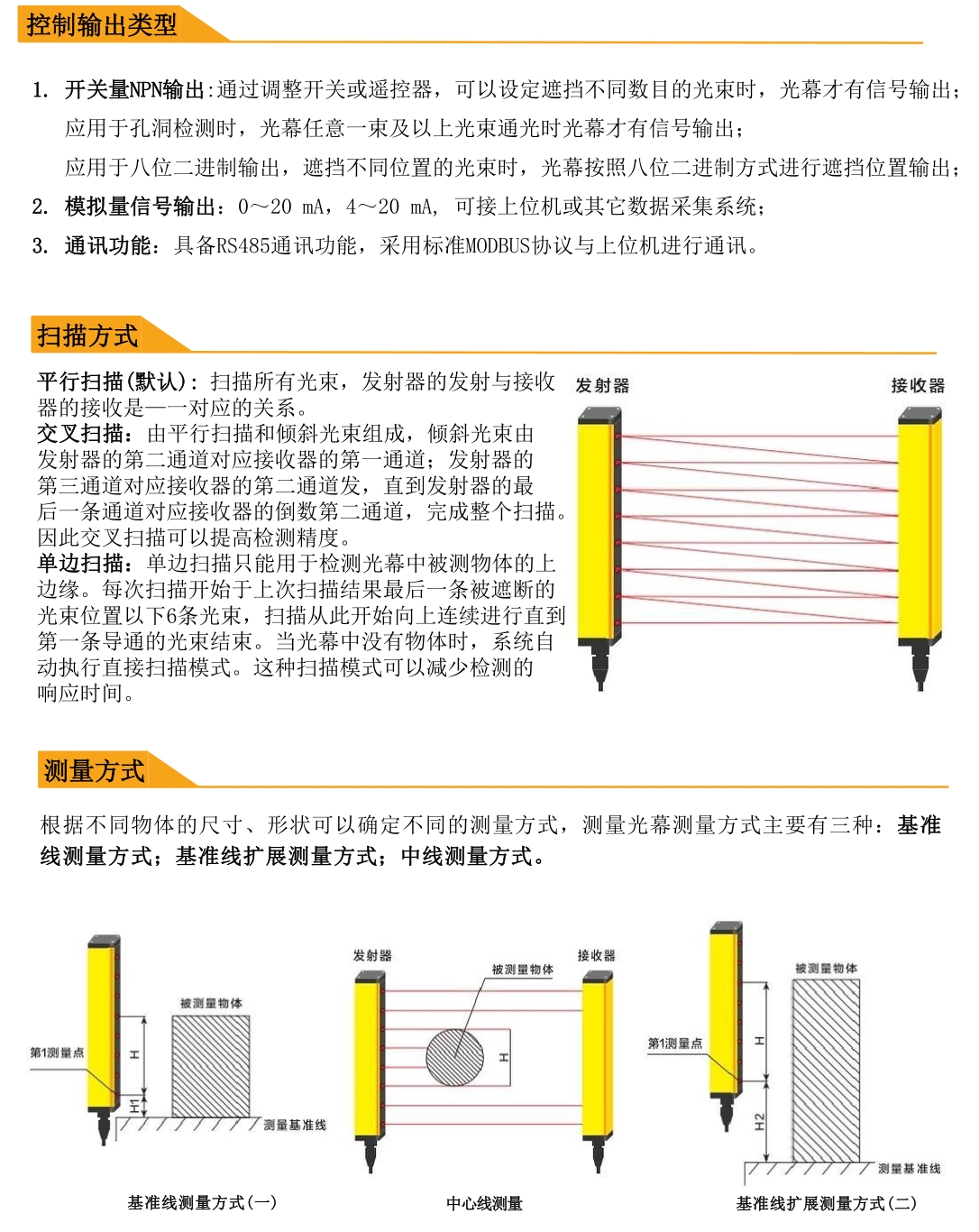

      信号输出开关量输出/模拟量输出/RS485
      工作温度-10℃~+55℃
      储存温度-40℃~+70℃
      工作湿度≤85%RH
      抗光干扰10000Lux
      光幕形式对射型
      防护等级IP65
      产品认证CE FCC
      电路保护反接保护/输出短路保护

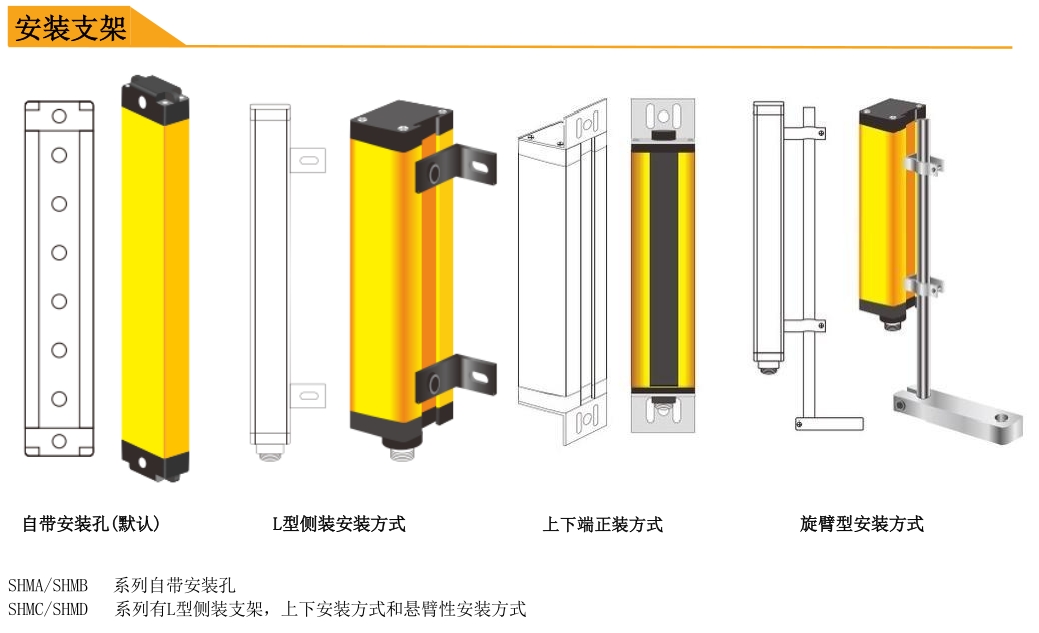

      可配控制器是


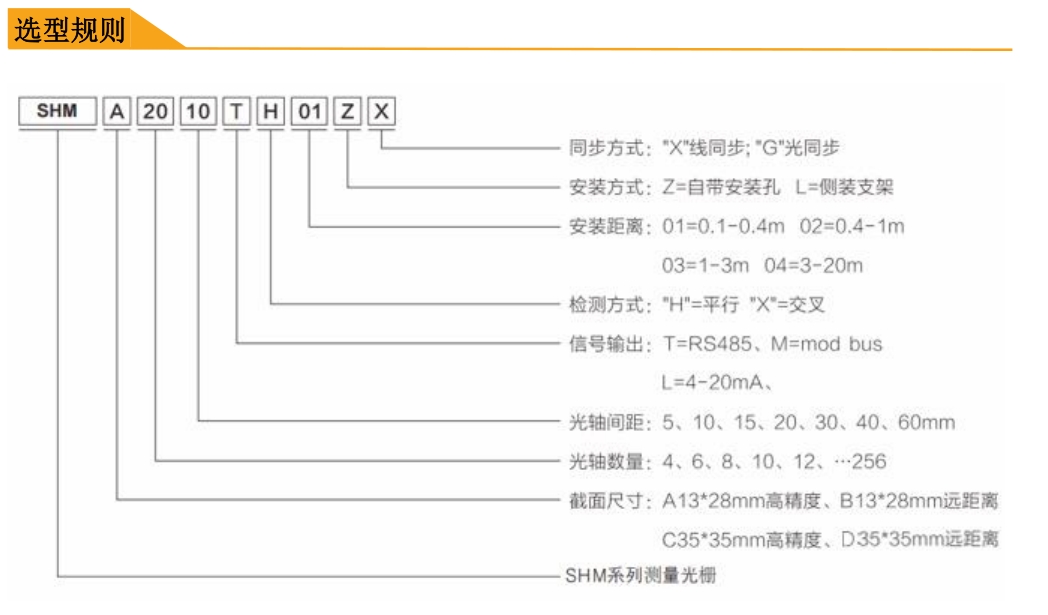

    选型表

      光轴间距10mm20mm40mm60mm
      光轴数型号保护高度(mm)总高度(mm)型号保护高度(mm)总高度(mm)型号保护高度(mm)总高度(mm)型号保护高度(mm)总高度(mm)
      4SHMB041030106SHMB042060106SHMB0440120186SHMB0460180266
      6SHMB061050106SHMB0620100146SHMB0640200266SHMB0660300386
      8SHMB081070106SHMB0820140186SHMB0840280346SHMB0860420506
      10SHMB101090126SHMB1020180226SHMB1040360426SHMB1060540626
      12SHMB1210110146SHMB1220220266SHMB1240440506SHMB1260660746
      14SHMB1410130166SHMB1420260306SHMB1440520586SHMB1460780866
      16SHMB1610150186SHMB1620300346SHMB1640600666SHMB1660900986
      18SHMB1810170206SHMB1820340386SHMB1840680746SHMB186010201106
      20SHMB2010190226SHMB2020380426SHMB2040760826SHMB206011401226
      22SHMB2210210246SHMB2220420466SHMB2240840906SHMB226012601346
      24SHMB2410230266SHMB2420460506SHMB2440920986SHMB246013801466
      26SHMB2610250286SHMB2620500546SHMB264010001066SHMB266015001586
      28SHMB2810270306SHMB2820540586SHMB284010801146SHMB286016201706
      30SHMB3010290326SHMB3020580626SHMB304011601226SHMB306017401826
      32SHMB3210310346SHMB3220620666SHMB324012401306


      34SHMB3410330366SHMB3420660706SHMB3440132013865mm
      36SHMB3610350386SHMB3620700746SHMB364014001466SHMA080535111
      38SHMB3810370406SHMB3820740786SHMB384014801546SHMA160575131
      40SHMB4010390426SHMB4020780826SHMB404015601626SHMA2405115171
      42SHMB4210410446SHMB4220820866SHMB424016401706SHMA3205155211
      44SHMB4410430466SHMB4420860906SHMB444017201786SHMA4005195251
      46SHMB4610450486SHMB4620900946SHMB464018001866SHMA4805235291
      48SHMB4810470506SHMB4820940986SHMB484018801946SHMA5605275331
      50SHMB50I0490526SHMB50209801026SHMB504019602026SHMA6405315371
      52SHMB5210510546SHMB522010201066


      		SHMA7205355411
      54SHMB5410530566SHMB542010601106


      		SHMA8005395451
      56SHMB5610550586SHMB562011001146


      		SHMA8805435491
      58SHMB5810570606SHMB582011401186


      		SHMA9605475531
      60SHMB6010590626SHMB602011801226


      		光轴5mm间距,光轴数量为8的倍数
      62SHMB6210610646SHMB622012201266





      64SHMB6410630666SHMB642012601306





      66SHMB6610650686SHMB662013001346





      68SHMB6810670706SHMB682013401386





      70SHMB7010690726SHMB702013801426





      72SHMB7210710746SHMB722014201466
